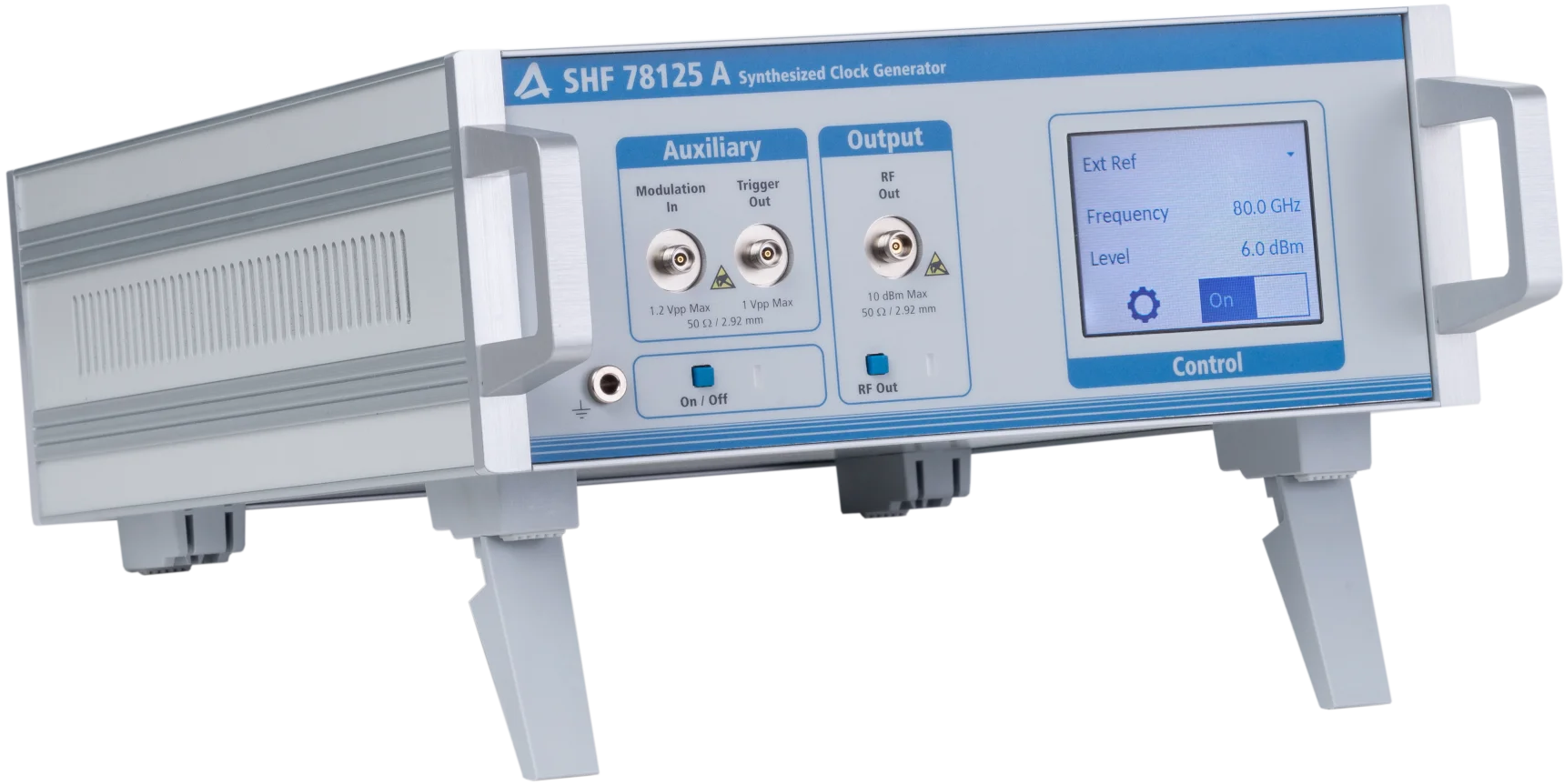

SHF Synthesized Signal Generators are purpose-built for CW signal generation, delivering the most cost-effective approach in this frequency range. The SHF 78125 A combines excellent stability, signal purity, and fidelity, and is now available in a new configuration supporting output frequencies from 1 to 80 GHz.
Features
- Frequency generation from1 to 80 GHz with 1 kHz resolution
- Output power adjustable from -10 to +4 dBm with 0.1 dB resolution
- Highly improved phase noise, harmonic & sub-harmonic suppression (see comparison with the SHF 78124 A)
Output Signals

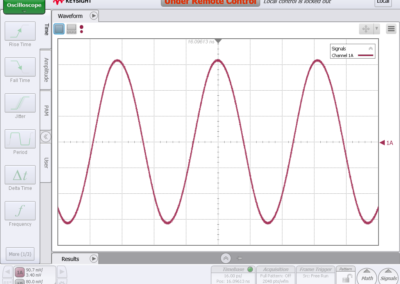

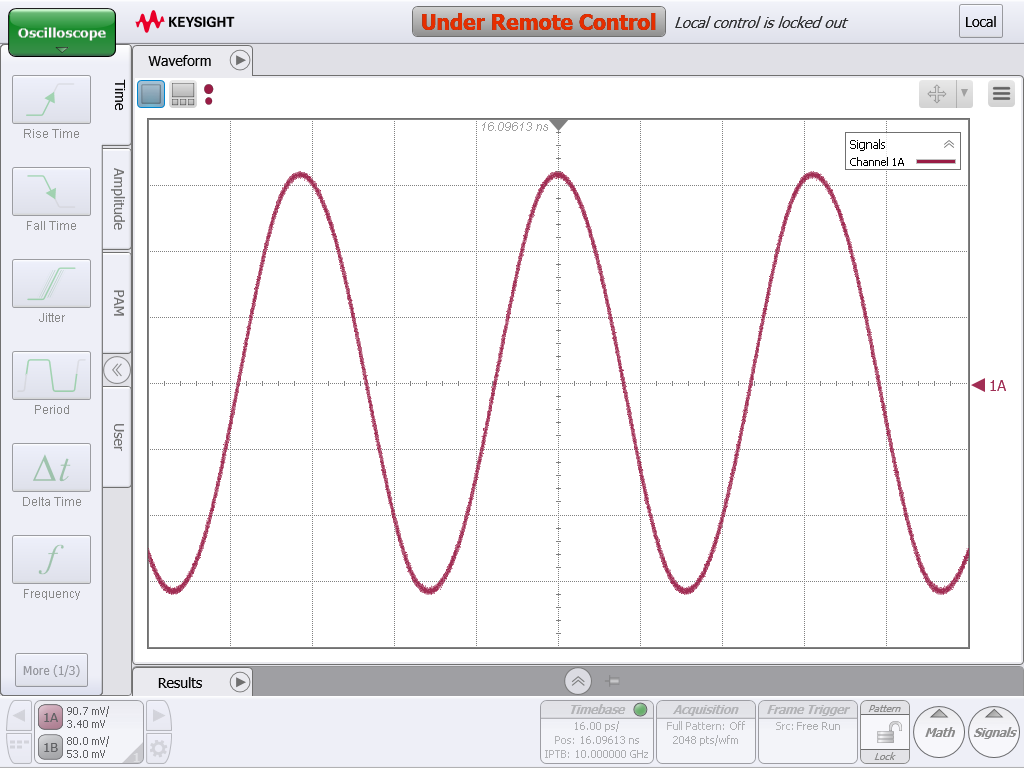

20 GHz

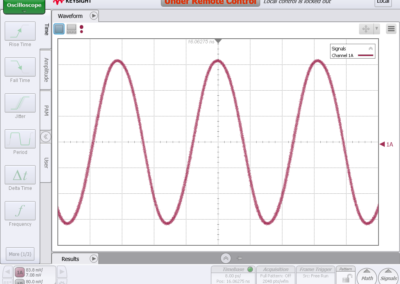

40 GHz

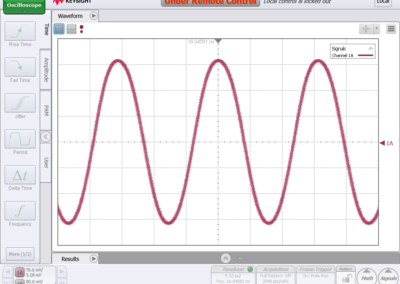

60 GHz

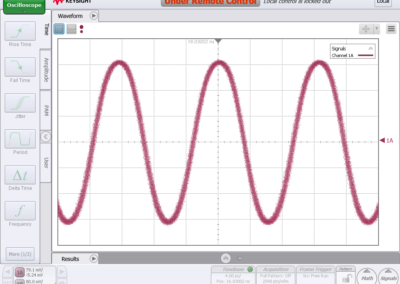

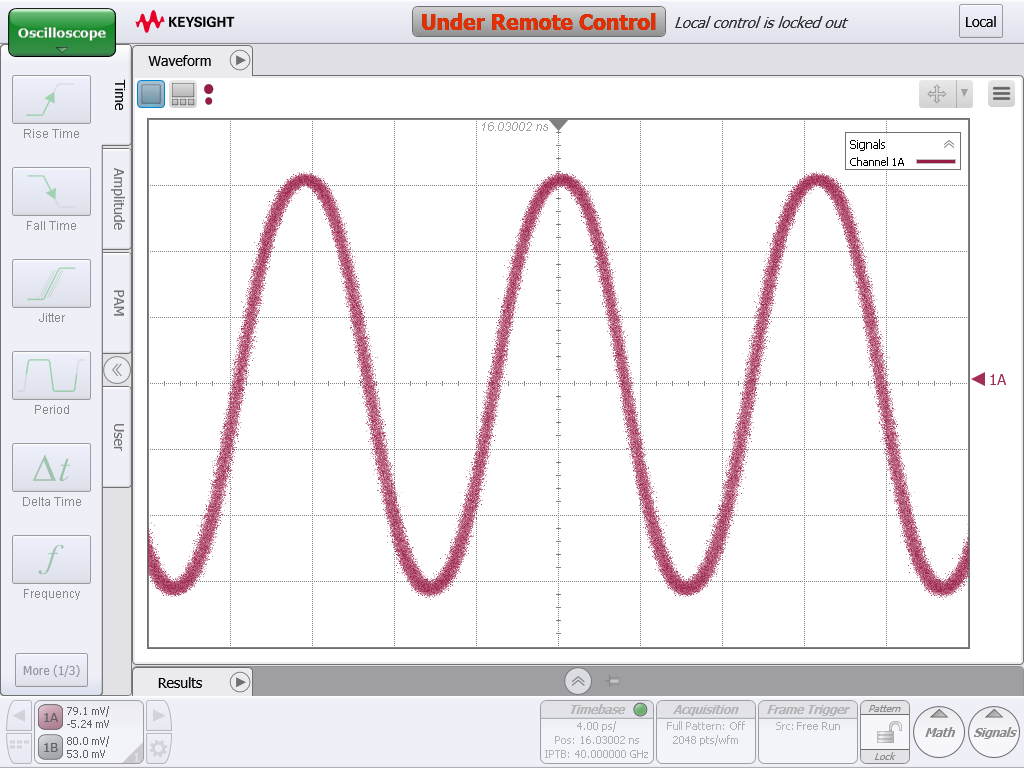

80 GHz
Applications
- Calibration of T&M instruments such as oscilloscopes, spectrum and network analyzers
- Characterization of electronic components such as amplifiers, mixers, filters, and oscillators
- Reference in systems requiring precise timing, such as radar, navigation, and high-precision clocks
- Use in electromagnetic compatibility (EMC) and electromagnetic interference (EMI) testing to simulate interference signals
- Provide the precise signals needed to control qubits in quantum computing and quantum communication
More Information
For detailed specifications and further information, please find the data sheet on our “RF & Microwave Modules and Synthesizers Product Page”.
