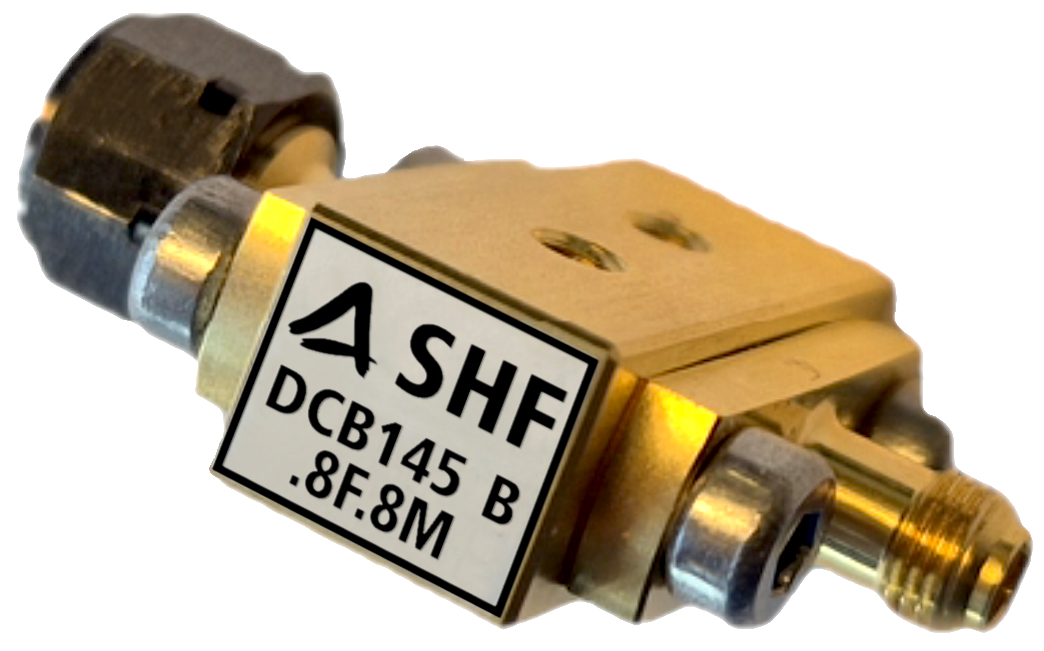

SHF announces the release of its first component designed for operation up to 145 GHz: the SHF DCB145 B DC-Block. The new device complements the recently introduced 145 GHz ecosystem with adapters from KMCO and cable assemblies from Totoku.
All 145 GHz parts are equipped with 0.8 mm connectors, with freely selectable gender configuration to support flexible system integration.

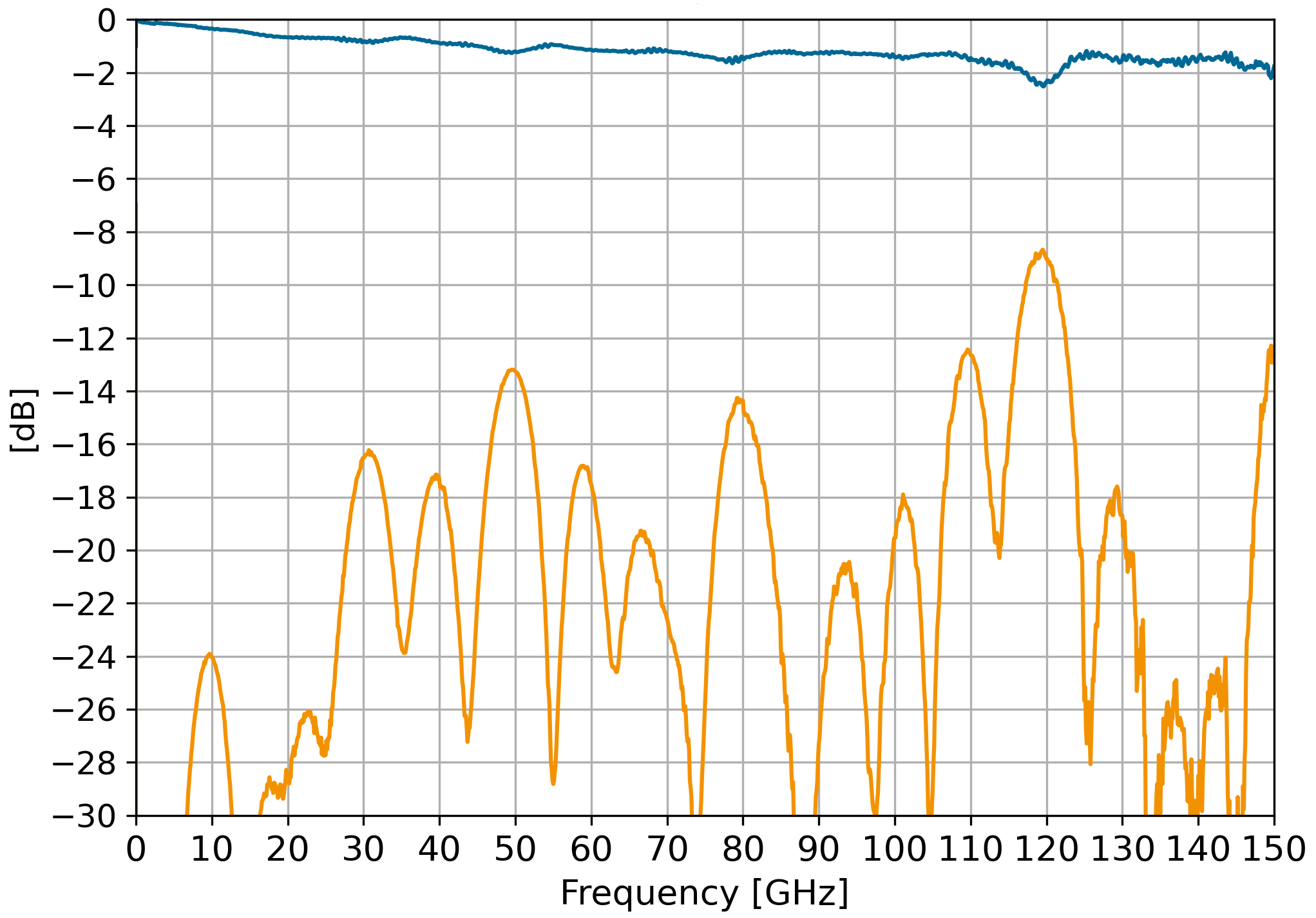

Designed for excellent broadband performance, the DC-Block allows millimeter-wave signals to pass through with minimal insertion loss while blocking DC components in the signal. Please see S12/S21 in blue and S11/S22 in orange above.
Typical applications
- Data transmission beyond 400 Gbps per lane (up to 200 GBaud PAM4)
- 1.6 T and 3.2 T optical communication systems
- High-frequency test and measurement setups
- Semiconductor and device characterization
- Millimeter-wave and emerging 6G research
Meet us
- You can find us at OFC 2026 in Los Angeles to learn more about the new DCB145 B DC-Block and SHF’s latest developments in high-frequency technology.
Further Info
- The full data sheet can be downloaded here or in our “Passive Components” product section.
- Typical s-parameters can be downloaded here.
